Kolb Classic
Turning Ideas and Visions into Design
Clay
The Perfect Material
For scale and full-scale models
Suitable for self-supporting and hollow parts
Manually workable
Optimal for NC-milling

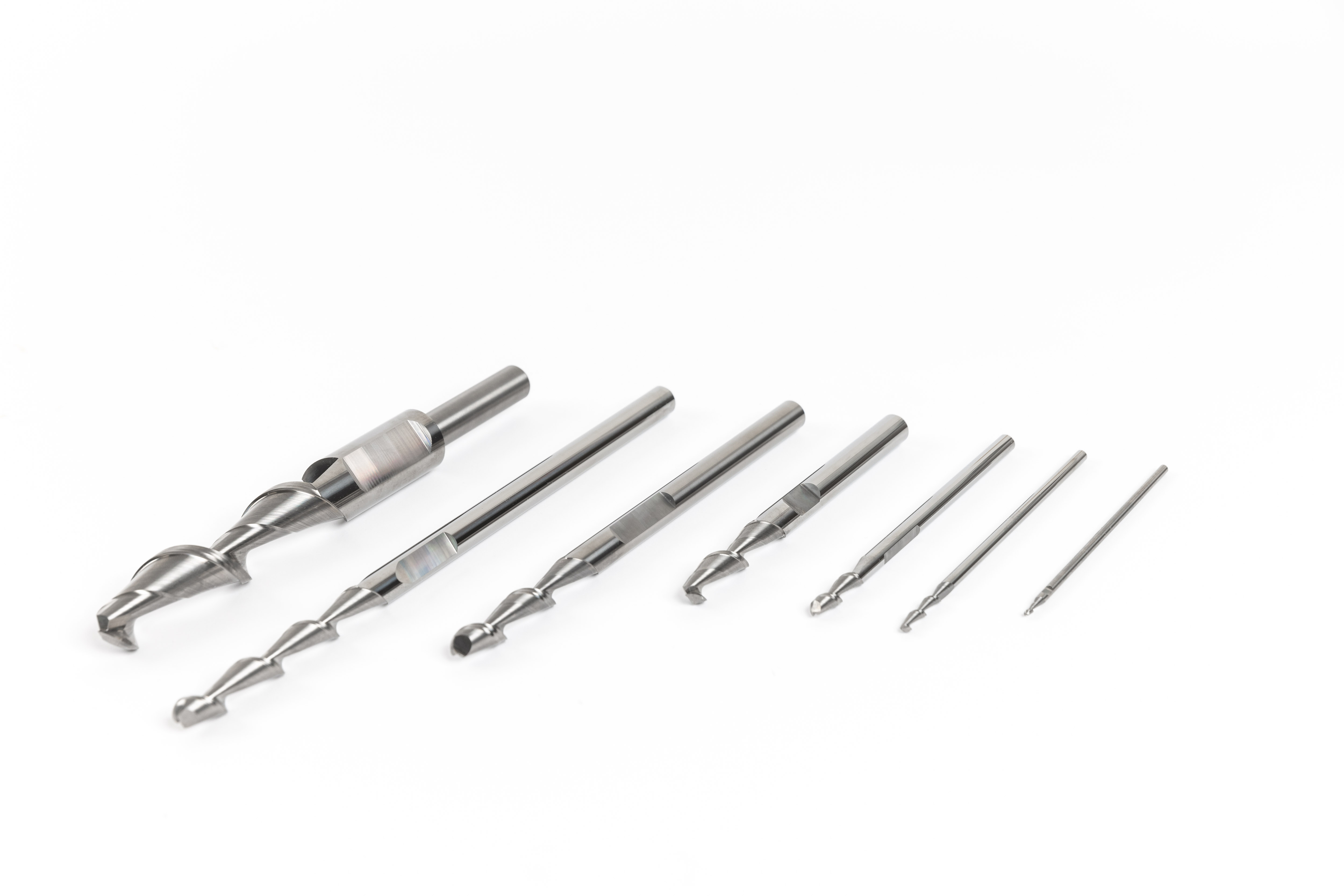

Modelling Tools
Great Tools - Great Work
Dedicated clay modelling machine
Performance 40 m/min
Clay and block material
Spindle 1 kW (Eco mode) / 2.2 kW (Power mode)
Spindle 2 kW (Eco mode) / 3.6 kW (Power mode)

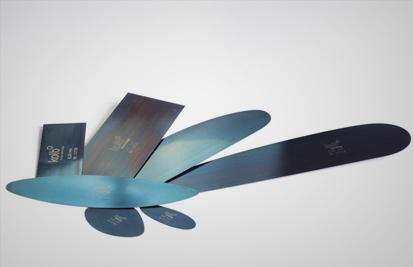

Modeling Slicks
For Optimal Surface
Omnidirectional drive system
Self-levelling, no compromise on accuracy
Performance 20 m/min
Spindle 1 kW (Eco mode) / 2.2 kW (Power mode)
Spindle 2 kW (Eco mode) / 3.6 kW (Power mode)
For Catalogue:
Send email
ConceptLine
For Perfect Clay Modeling and Design Processes

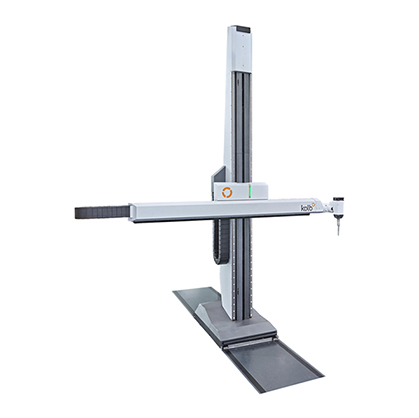

Conceptline
Our Proven BestSeller
Dedicated clay modelling machine
Performance 20 m/min
Clay and block material
Spindle 1 kW (Eco mode) / 2.2 kW (Power mode)

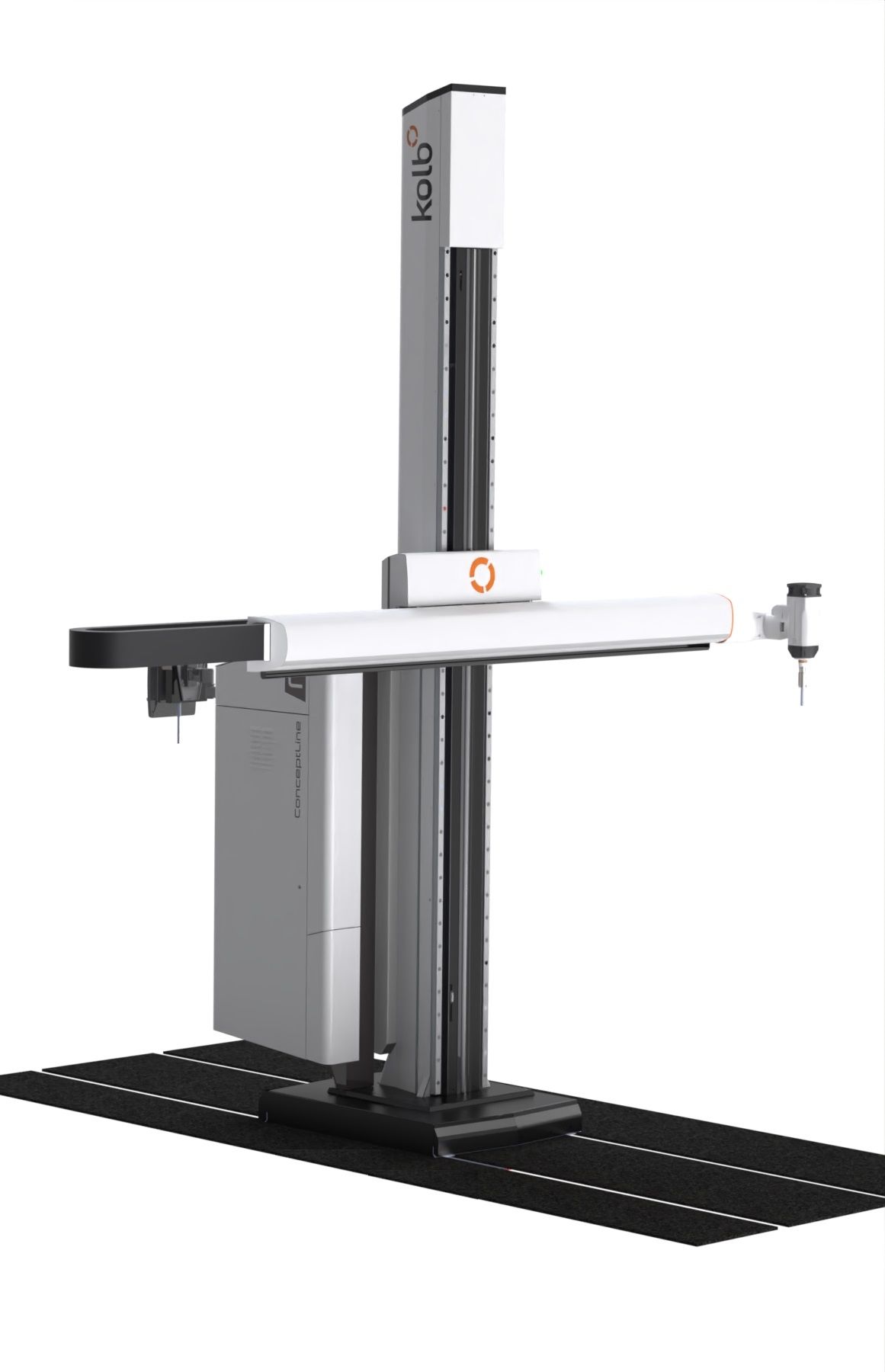

Conceptline Evo
Sleek Design - High Performance
Dedicated clay modelling machine
Performance 40 m/min
Clay and block material
Spindle 1 kW (Eco mode) / 2.2 kW (Power mode)
Spindle 2 kW (Eco mode) / 3.6 kW (Power mode)

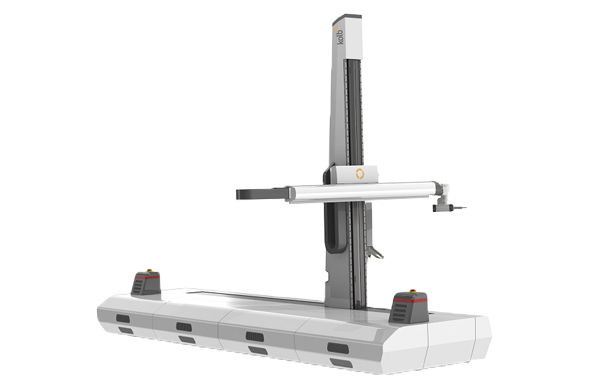

Conceptline Modeling
Flexible Modelling at any Place
Omnidirectional drive system
Self-levelling, no compromise on accuracy
Performance 20 m/min
Spindle 1 kW (Eco mode) / 2.2 kW (Power mode)
Spindle 2 kW (Eco mode) / 3.6 kW (Power mode)
Studioline
For Perfect Clay Modeling and Design Processes

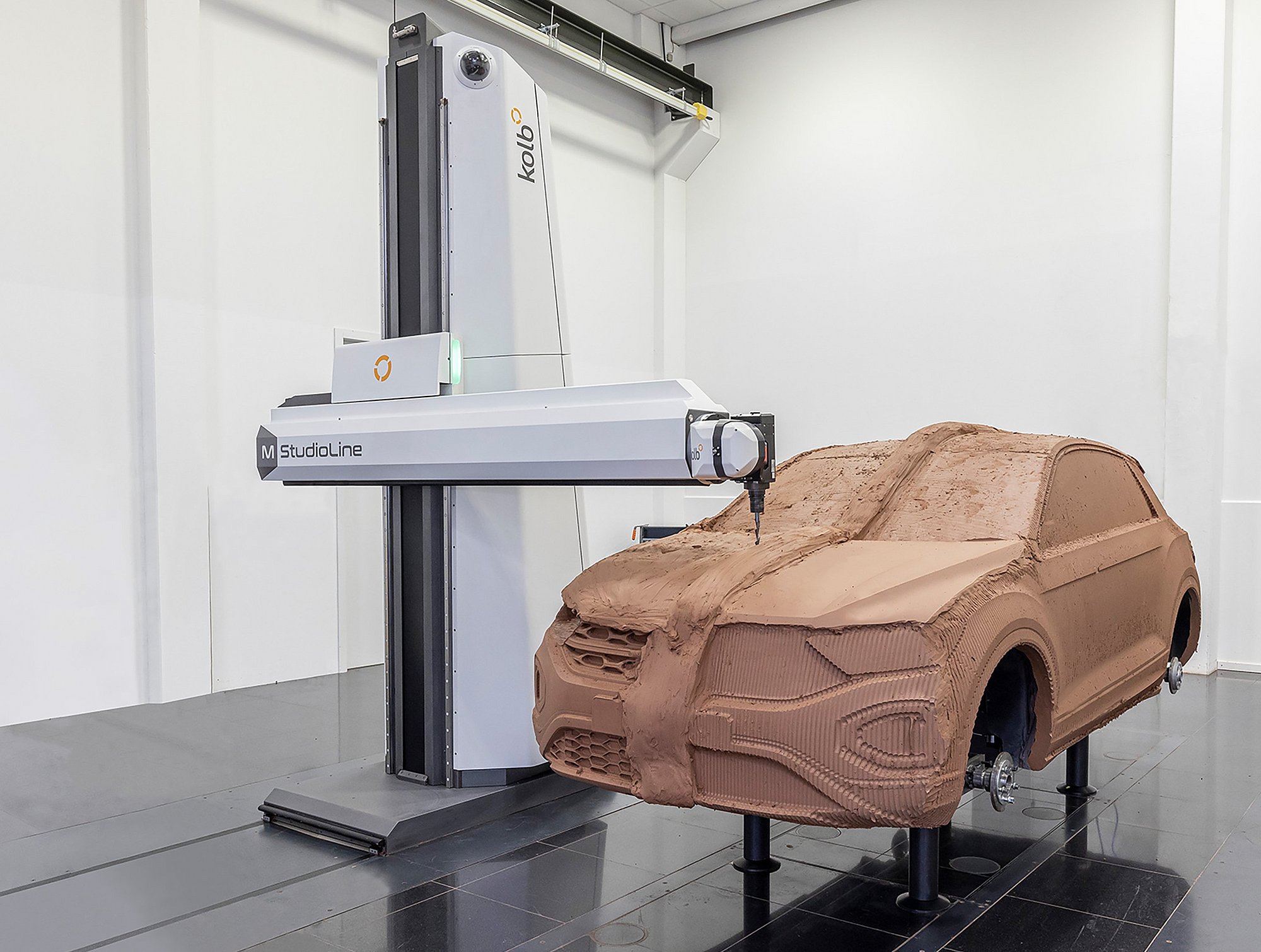

StudioLine M
Next Level Milling
Performance 35 m/min
Clay, block material and ureol
Spindle 11 kW (Eco mode) / 13 kW (Power mode)
Automatic Tool Changer
Integrated Extraction System

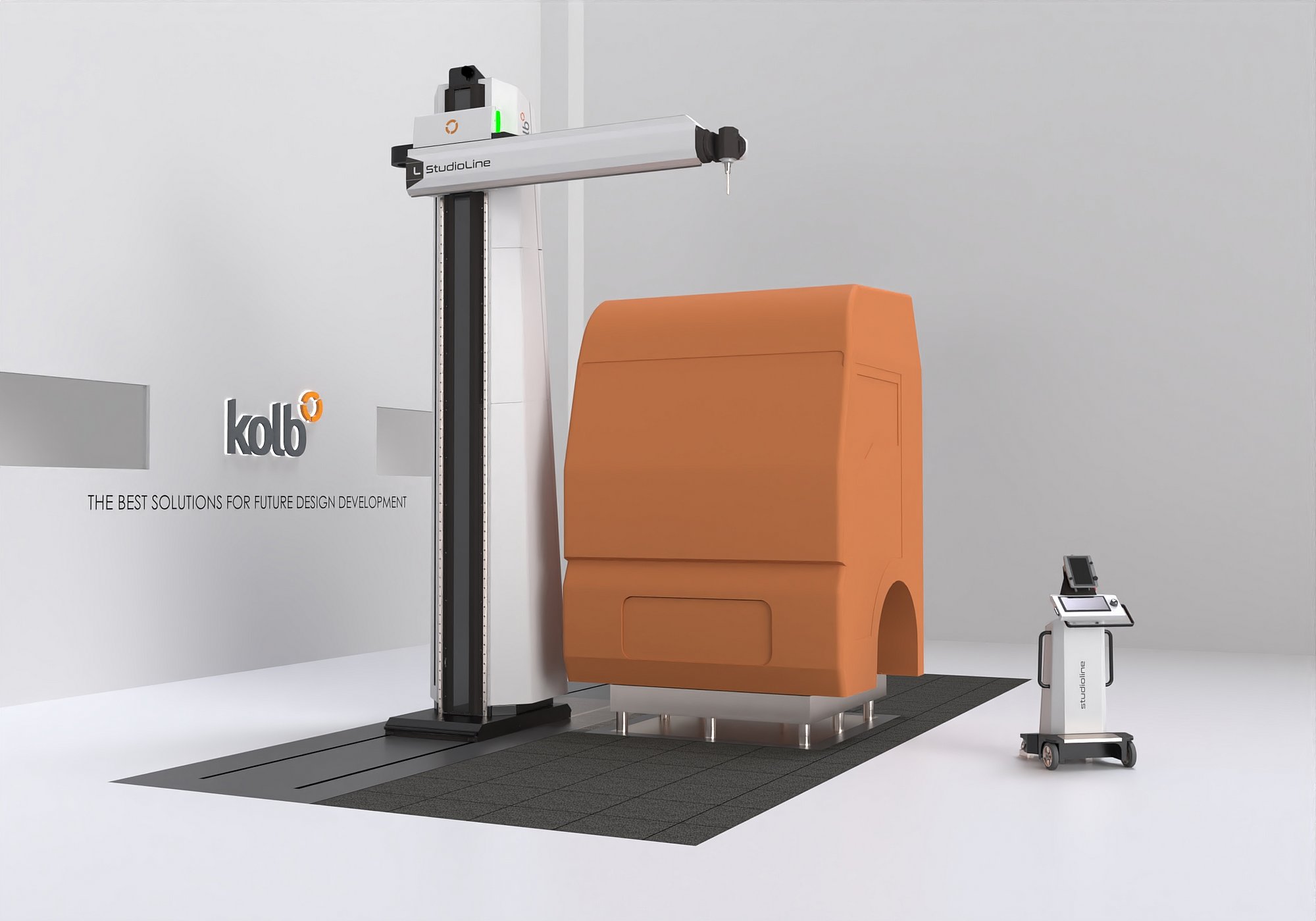

StudioLine L
High Level Milling
Milling up to 4 m possible
Performance 28 m/min
Clay, block material and ureol
Spindle 11 kW (Eco mode) / 13 kW (Power mode)
Automatic Tool Changer
Integrated Extraction System
StudioEquipment
For Perfect Clay Modeling and Design Processes
ClayOven
Perfect Temperature
Predominantly made of stainless steel
Special modifications for warming of clay
Modified stainless steel gratings with perforated plate support and longer cord
Digital backwards clock with target time, adjustable from 1 minute to 99 days
MobileRadiator
Safe Heating
New, innovative and mobile radiator
2 tapes with 4 lamps
400V, 3PH, 12 kW, 16A, 5P CEE
Drying and heating area: approx. 2,000 x 1,100 mm
12 preset and 3 customised programmes
Integrated Extraction System
PortableList
Effortless Moving of your Models
Moving on integrated air pads
Easy to handle and flexible
Moving of full-scale model possible by a single person
The PortableLift is available with lifting capacities of 2.8 t and 3.2 t.
StudioMirror
A Special Mirror
Skid-mounted, mobile
Dimensions - only mirrors: width: approx. 1,000 mm, height: approx. 1,754 mm
Dimensions - in total (mirror and mobile skid): height: 2,000 mm; width: approx. 1,291 mm
Distance: floor to mirror: approx. 153 mm
DynocTub
Simple and Clean Working
Length: 1,300 mm
Width: 700 mm
Height: 970 mm
Power: 230 V/ 2.1 kW
Temperature: approx. 40°C
MouldingPress
Perfect Profile within Seconds
Width: 600 mm
Height: 1,140 mm
Weight: approx. 130 kg
Power supply: 230 V / 50 Hz / 2.2 KW / 10 A
Length: 1,460 mm (with folded worktop); 1,900 mm (with unfolded worktop)
Modelling and milling Table
Optimal processing of your model
For processing and milling of scale models and interiors
Vertical clamping surface available e.g. for door panels
Individual adaptations and geometries according to customer requirements
On request also with measuring points, retractable undercarriage etc.
Surface Control System(LED)
Precise Surface Inspection
For the optical inspection of surfaces
Projection of parallel light strips in alternating line optics of LED modules onto the workpiece to be inspected
Any unevenness in the surface is then immediately visible in the form of curves or wavy lines in the projected line pattern
On mobile trolleys and therefore flexible usage
Available in 2 standard versions and also in various sets on demand
